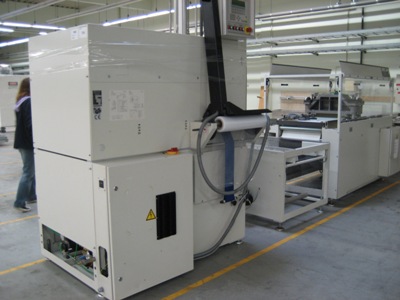

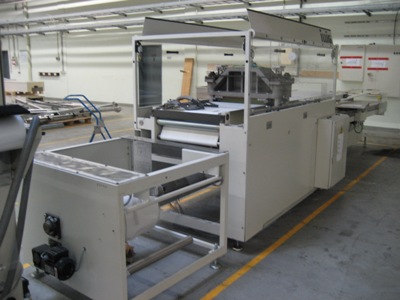

Year 2002 illig Skin pack Machine (like blister)



10,000-Sold

SB 74 C10

Located Germany

Excellent good condition



Ref 218457



ILLIG SB machines are suitable for roll and sheet processing. The skin packaging machine turns into a vacuum former by sealing the blow box, thus providing the possibility for pneumatical pre-stretching of material.

Skin packaging is the ideal solution for manufacturing cost-effective packs. No follow-up investments in tools or conversion times are required. Excellent transport protection is provided due to excellent product fixing on the card. Count control of the content can be performed without opening the pack.

The basis of the pack is a card printed on both sides. Top and bottom side of the card can be decorated with single or multi-color printing. Transparency of the skin material in combination with a highly transparent sealing layer enhances the print of the card thus providing in a high-quality, sales-promoting way of presentation.




Forming area 505 x 775 mm
Dimensions of cardboard blank  500 x 770 mm
Material width 540 mm
Depth of draw positive 150 mm
Depth of draw
negative
150 mm
Height of packing 150 mm
Material roll Ø max. 400 mm
Material roll core Ø 70 mm
Heater capacity 8.9 kW
Vacuum pump 40 m³/h
Operating pressure min. 6 bar

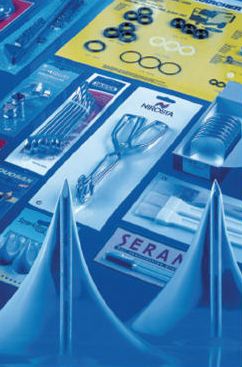

Various sample packs



TDK 8mm Video tapes in

skin/blister pack

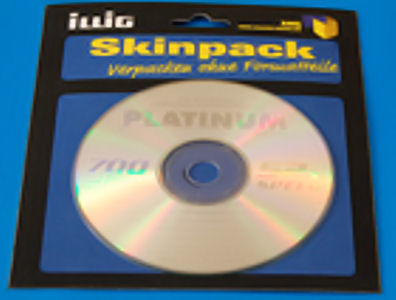

The Skinpack Application

in CD\DVD
