Wooil High Tech

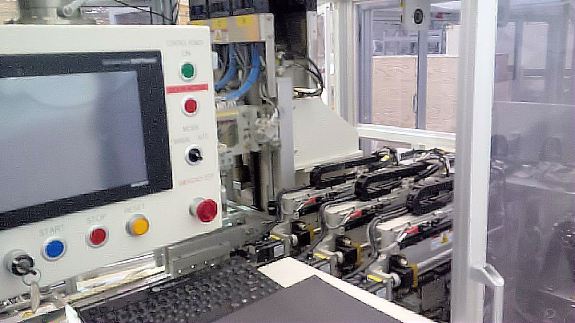

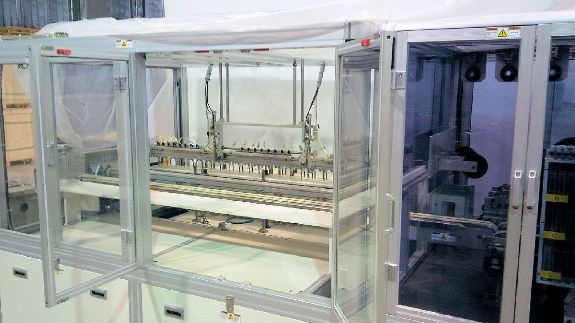

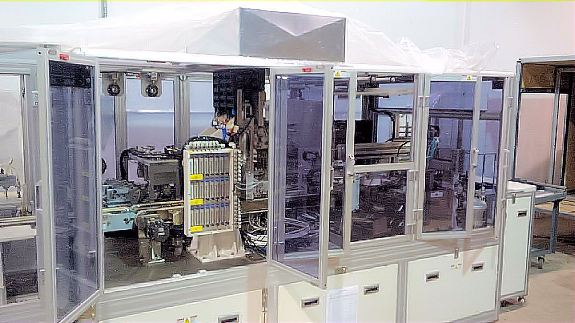

Year 2011 3BB Tabber

This machine was in operation until quite recently

Currently set for 3BB but can also do2 BB

Manufacturer Book spec 600 per hour - effective consistent running 400 per hour

Made in Korea

Located in North America.

$22,000 - sold

1. Cell Size: 156 X 156mm (6-inch).

2. Cell Thickness: over 180/L/m

3. Number of Bus Bar 2 & 3 Bus Bar

4. Pitch of Bus - 2 Bus Bar1 70 ~ 80mm

- 3 Bus Bar: 50 ~ 55mm.

1. Cell Specializes Magazine

2. 1 Tray: 50~60 Cell Loading

3. Magazine: 2 Stages, 15 Trays / Istage Loading *. The quantity of loading can be varied in accordance with the specification of Maker,

1. Applicable Interconnect Wire Spec.

-Width: 1.5 ~ 2.5mm (Adjustable: Wire Feeding V-Rail (Replacement in manual))
-Thickness: 100 ~ 300/jm.

1. Effective String Spec.

2. Max. String Length: 2000mm. (6 inch Cell X 12ea)

3. Max. Number of Cell: 12 Cells / String.

4. Max. Distance between Cells: 1.5~50mm (Standard Spec)

5. Length of Ribbon: 358mm.

6. Length of Edge Ribbon: 2~40mm.
