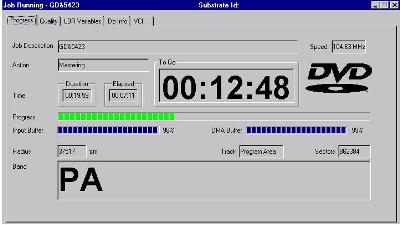

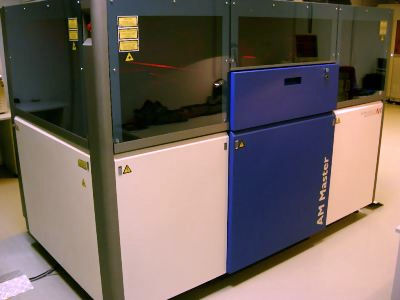

		Year 2004 Singulus AM Master - Speed Upgrade 2008 With Year 2006 Technotrans and some ancillarys $250,000 (€190,000) CD: 12x, DVD: 4R DVD recording time: 3R-28min, Optimized encoding (writing strategy) 180 mm glass disc diameter SCeNT- version 1.31.3.2
Ref 202913

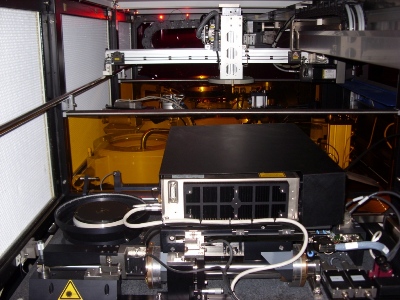

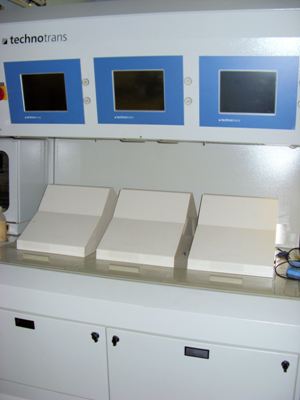

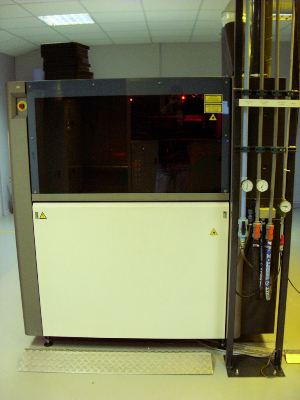

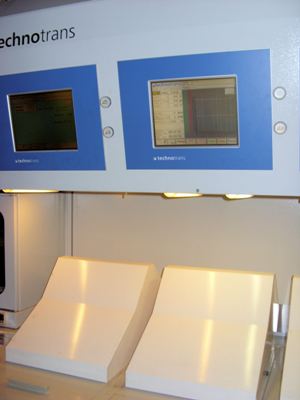

		ACE-version 1.3.4.2 Am-Master incl AHU Year 2006 Technotrans Modec.efs v3 UVOCS -UV ozon cleaner system. Chiller - Piovan CH180 Air Compressor Atlas Copco GA7 Excellent condition Can be seen running Located Europe
		Additional Equipment Available at extra cost Chemical workbench $500 Waste water installation $5000 Lab and chemical testing set $1700 The jigs for the electroforming cells FOC Glass Disc Recycler - Miele, Germany $6000 Sibert inner 22mm and outer punch $6000 Sibert backside finisher $5000 Total amount of the ancillarys extras $24,200

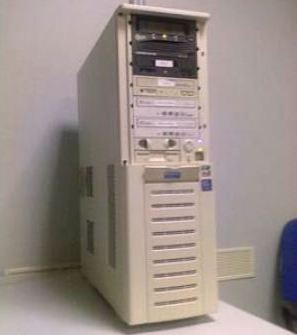

		Server Spec. 3x250 Gb HDD RAID, 1X120 Gb system HDD 2X 1 Gbit Ethernet cards Drives: DLT-Tandberg-SDLT-320 CD- Plextor Ultraplex40max CD/DVD-Plextor-750a-3 pcs. Software: Cytrix, original version. Utility requirements: AM-Master: - Electrical Supply: 230 / 400V 50 / 60 Hz - Power Consumption: ~ 3kVA - DI Water: ~ 61 l / h, based on 4 masters / hour - Argon Gas: ~ 4Nml / Master or 3.4Nml /- - Room Conditions: Temperature 18 – 24 єC Humidity 40 – 70 % RH Air handling unit: - Electrical Supply: 400V 50 / 60 Hz - Power Consumption: ~ 4kVA -Cooling water: 2-3 bar ,temperature15-18 C - DI Water: ~ 5 l / h

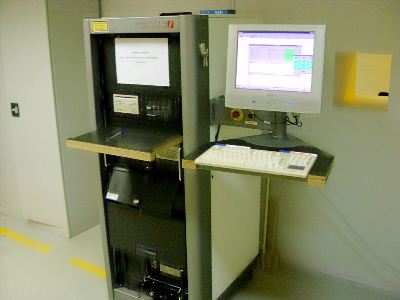

		Special original packing parts available AM-Master - Width: 1700 mm - Length: 2600 mm - Height: 1700 mm - Weight: 1966 kg Air handling unit - Width: 790 mm - Length: 1940 mm - Height: 1960 mm - Weight: 700 kg Work station (ACE-100 comp. SCENT comp), 620mmX 1590mmX 760mm Image computer (server) 200mmX 650mmX 540mm
